Aralık 22, 2014, 22:35:08

Gönderen Konu: Gezgin Korsan Okul Gemisi - Gaff-Rigged Schooner 60'  (Okunma sayısı 2210 defa)

0 Üye ve 1 Ziyaretçi konuyu incelemekte.

Çevrimdışı Erdem Çakır

  • Gezgin Korsan
  • *
  • İleti: 3.741
Gezgin Korsan Okul Gemisi - Gaff-Rigged Schooner 60'
« : Mayıs 16, 2010, 10:57:20 »

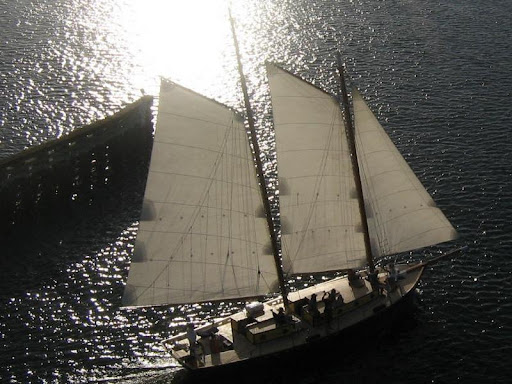

2004 60' Custom Uniquely Built Classic Gaff-Rigged  Schooner - 80.000 USD

You are not allowed to view images. Register or Login

You are not allowed to view images. Register or Login

You are not allowed to view images. Register or Login

Specs
Builder: CUSTOM
Designer: Isaac Webb historical design

Dimensions
LOA: 60'
Beam: 14.3
Maximum Draft: 5' at stern
Displacement: 34300
Ballast: 14000 LEAD
Bridge Clearance: 54

Engines
Engine Brand: VETUS
Engine(s) HP: 55

Tanks
Fuel Tanks: 40

You are not allowed to view images. Register or Login

You are not allowed to view images. Register or Login


Introduction
This schooner will make an excellent charter vessel for six passengers or classic yacht for personal cruising. She has wide decks and plenty of room throughout for dinner cruises, sunset sails, or any sort of sailing tour. Alternatively, she makes a wonderful liveaboard home. With separate master quarters, she has just the right blend of functional space and privacy. But perhaps her greatest feature pertaining to either intended use is her ability to attract attention wherever she is. You don't see people clawing for their cameras for a Hunter or pointing, waving and honking from shore at the sight of a Bayliner. She is, if nothing else, distinctive.
The vessel was last surveyed in Maine in 2006. The appraised value at that time was $150,000. Since then, the yacht has gained more value through several valuable additions including a Simrad autopilot, gorgeous douglas fir and walnut binnacle, and a new club-footed jib as well as other items that the owner will be happy to discuss.

Construction
The construction is two layers of 9 oz. Fiberglass over two double diagonal layers of marine fir plywood over longitudinal 1x4 clear Douglas fir planks covered in one layer of fiberglass. All exposed wood is encapsulated in West System Epoxy for complete protection and low maintenance. Decks are fiberglass covered plywood over laminated Douglas fir beams. She is heavily built and designed for a traditional look with as many modern improvements as possible.

You are not allowed to view images. Register or Login

Electrical
Two group 27 AGM batteries in boxes drive the DC system, 13 position DC panel with volt and ammeter, 7 position AC panel with main breaker, True Charge 20 amp charger, 4 independent 3-way bilge pump switches, Jensen stereo with 6x9 speakers throughout the boat, 17 in flat screen television mounted to wall in aft cabin, stereo is integrated to both laptop and TV, Blue Sea shore power / generator switch makes the addition of a generator a 3 wire connection, West Marine VHF 600 with wireless remote, Standard handheld VHF backup, all navigation lights are USCG 2nm certified ( including tri-color and anchor) New owner additions: two additional group 150 AGM batteries, boat is wired up for the alternator to supply power to house and starting batteries while underway, 12-volt cigarette battery plug-in on navigational console, Garmin 1250 GPS Chartplotter.

Rigging
14" Stainless chain plates ( 8 ), Suncor swage less mechanical terminals on 3/8 inch 316 stainless 1x19 wire, hounds and kranse irons custom welded by Howdy Bailey of Norfolk, VA, 9 in round laminated Douglas Fir Spars with 6oz. fiberglass reinforcement, bobstay and whisker stays are Suncor stainless 3/8" chain, Spartite deck sealant on each mast/deck joint, foremast is 45' long and mainmast is 54'. New owner addition: Lazy jacks on fore and mainsail.

Deck
Two stainless bow rollers (through bolted), one ships the primary anchor Fortress and the other ships the storm anchor Bruce 66#, rode is 25' high test 5/16" on 250' 3/4" three strand, anchor has been used once, 6 cleats are 12" stainless ( through bolted ), 12 bronze ports are 8 inch round from Newfound Metals, travelers are schedule 40 stainless ( through bolted ), non-skid is Evercoat Skid No More, Ritchie Navigator binnacle mounted compass, 8 - 8.5"x20" fenders, 1 - 15" round fender, 8 - 3/4" dock lines, 2 - anchor snubbers, 100' 3/4" nylon storm line, 15' 5/16" stainless steel chain. New owner additions: 300 ft of ¾ inch double braided nylon for primary rode, 15 feet of ½ inch chain and a 25lb steel bruce anchor. An additional SS cleat on foremast, 42” high brass stanchions with ½” black nylon rail lines.

You are not allowed to view images. Register or Login

Engine Room
Large open space after the aft cabin with the engine central. Full and unrestricted access to all of the engine is possible and comfortable. A manifold of Racor filters allows changing without shutting the engine down. Shaft is 1.5" Stainless and turns a 19"x11" Michigan three blade prop. The stern gland is a pack less shaft seal by PYI. The muffler is a Vetus waterlock and the exhaust contains a shut off valve for rough seas. Complete set of spare belts, filters and fluids, as well as a 12 volt Jabsco Oil Change Pump. New Owner Additions: 95 Amp alternator and oil pressure sensor.

Mechanical
Steering is closed system Vetus hydraulic helm with bronze ram, engine controls are Vetus stainless steel integrated throttle/shifter, Engine control panel has tachometer, hour meter, oil pressure, and coolant temperature with silent alarms. New owner addition: Simrad autopilot

You are not allowed to view images. Register or Login

Extra Gear
Dell Inspiron 1100 2.0 GHz laptop computer, 4 fire extinguishers, 11 life jackets, Life-sling. New owner addition: six-person liferaft.

You are not allowed to view images. Register or Login

Ancor Locker
30 x 30 inch hatch, 4 foot headroom, large enough for workroom, sail locker, anchor rode, etc. Anchor rode is fed through 2 stainless hawse pipes into the bilge. This area is separated from accommodations by a full length watertight bulkhead. It contains a Rule 500 automatic bilge pump.

You are not allowed to view images. Register or Login

You are not allowed to view images. Register or Login

Staterooms
Double staterooms to port and starboard at forward end. Each berth is 48" wide at shoulder and 6' 6" long. Mattresses are 6" custom memory foam. Each stateroom has its own hanging locker and light. Beneath each berth is a custom made 75 gallon water tank. Between the staterooms is a large head with shower and Sealand Traveler Maine Toilet. Aft of the accommodations is the U-shaped galley to port and the 6 person settee to starboard. Floors are 3/4 inch varnished oak. Another watertight bulkhead separates this cabin from the aft cabin.

Master berth is forward to port (queen size with 6" memory foam mattress) and another settee and pilot berth are to starboard. Aft is a large closet ( pre-plumbed for a head ) to port and the nav station to starboard. The 65 gallon fuel tank is located below the sole and a 25 gallon water tank is below the berth and another below the settee. Another full watertight bulkhead separates the accommodations from the engine room.

You are not allowed to view images. Register or Login

You are not allowed to view images. Register or Login

Galley
24x24x9in stainless steel sink, 11 gallon hot water heater, plumbing for municipal water supply or service from the tanks using diaphragm pump with stainless accumulator tank, secondary water filtration on all supplies, Adler Barbour Cold Machine refrigeration compressor and cold plate in 7 cu ft ice box / freezer, Corian countertops throughout, full size combination toaster and microwave oven (stainless), 4 burner Force 10 stainless gimbaled cook top and oven with propane supply line leading to a container on deck, water fill manifold for all tanks and supply manifold, sink drains to a dedicated sump in the bilge where waste is pumped into a 18 gallon grey water tank.


You are not allowed to view images. Register or Login

You are not allowed to view images. Register or Login

You are not allowed to view images. Register or Login

İnşaat sırasında çekilen bir kaç kare.

You are not allowed to view images. Register or Login

You are not allowed to view images. Register or Login

You are not allowed to view images. Register or Login

Out Reach Sailing Adventures adlı şirket, üniversite öğrencileri ile birlikte 2004 de inşaa ettiği tekneyi yeni bir projeye geçecekleri için satışa koymuş.Tekne halen Key West, FL de turlara çıkıyormuş.

İlginizi çeker diye paylaşmak istedim.

Sevgiler...



Çevrimdışı Cem Gür

  • THALASSA - YALIÇAPKINI - TAYO-MAR ve IONIA
  • Gezgin Korsan
  • *
  • İleti: 4.622
  • SIĞACIK / TEOS
    • facebook profil
    • IONIA
Ynt: Gezgin Korsan Okul Gemisi - Gaff-Rigged Schooner 60'
« Yanıtla #1 : Mayıs 16, 2010, 11:38:04 »
Güzel tekne. Güzel proje. You are not allowed to view images. Register or Login
GeKo'ya da çok yaraşır.  You are not allowed to view images. Register or Login







You are not allowed to view links. Register or Login

Çevrimdışı Ahmet Semiz

  • S/Y Nelea-Foça
  • Gezgin Korsan
  • *
  • İleti: 1.439
  • İzmir
Ynt: Gezgin Korsan Okul Gemisi - Gaff-Rigged Schooner 60'
« Yanıtla #2 : Mayıs 16, 2010, 19:38:24 »
Fransuva namında ki keferenin  You are not allowed to view images. Register or Login Tell Kell adlı teknesine çok benziyor
iskele  kaptanı

Çevrimdışı Aydın Otyıldız

  • Gezgin Korsan
  • *
  • İleti: 649
Ynt: Gezgin Korsan Okul Gemisi - Gaff-Rigged Schooner 60'
« Yanıtla #3 : Mayıs 16, 2010, 19:58:10 »
Ahmet korsan'ım,
Fransuva ve teknesi Tell-Kell hala Türkiye de mi..?  You are not allowed to view images. Register or Login

Çevrimdışı Ahmet Semiz

  • S/Y Nelea-Foça
  • Gezgin Korsan
  • *
  • İleti: 1.439
  • İzmir
Ynt: Gezgin Korsan Okul Gemisi - Gaff-Rigged Schooner 60'
« Yanıtla #4 : Mayıs 16, 2010, 20:10:21 »
Tell Kell adlı teknesini belinde ki problemden dolayı kullanamadığı için 5 sene evvel sattı.Tekneyi geçen sene Kuşadası marinada gördüğümü hatırlıyorum.
Fransuva Marmaris te bir organizasyon kurdu özellikle Fransız yatçılara çeşitli konularda yardımcı oluyor;Tamirci ,Dr ,çekek yei,şarap  gibi
Kendisi ile en son evvelki sene yüz yüze görüştüm,duyduum son 2 senedir Hindistana gidip buralara geliyormuş,herhlde Nirvanaya yaklaşmıştır. You are not allowed to view images. Register or Login

nokta.net diye google ararsanız herhalde  ulaşırsınız
iskele  kaptanı

Çevrimdışı Ahmet Semiz

  • S/Y Nelea-Foça
  • Gezgin Korsan
  • *
  • İleti: 1.439
  • İzmir
Ynt: Gezgin Korsan Okul Gemisi - Gaff-Rigged Schooner 60'
« Yanıtla #5 : Mayıs 16, 2010, 20:21:48 »
 nokta yachting marmaris adı ile site çıkıyor
iskele  kaptanı

Çevrimdışı Aydın Otyıldız

  • Gezgin Korsan
  • *
  • İleti: 649
Ynt: Gezgin Korsan Okul Gemisi - Gaff-Rigged Schooner 60'
« Yanıtla #6 : Mayıs 16, 2010, 20:24:39 »
Teşekkür ederim..  You are not allowed to view images. Register or Login

Çevrimdışı Cem Gür

  • THALASSA - YALIÇAPKINI - TAYO-MAR ve IONIA
  • Gezgin Korsan
  • *
  • İleti: 4.622
  • SIĞACIK / TEOS
    • facebook profil
    • IONIA
Ynt: Gezgin Korsan Okul Gemisi - Gaff-Rigged Schooner 60'
« Yanıtla #7 : Mayıs 17, 2010, 00:00:00 »
Yahu Canlar, Korsanlar ....
Yapmayın etmeyin. Erdem'in gönderdiği uskuna ile "TelQuel"'in arması dışında ne benzerliği var?
Telle Quelle Fransız Bombiger'in en iyi tasarımlarından biri.
Zamanında Marmaris Netsel'de bağlı iken pek çok kezgidip iş yapmış direğine sevgili Cem Tekdağ'ı basmıştım.
You are not allowed to view links. Register or Login

Çevrimdışı Ahmet Semiz

  • S/Y Nelea-Foça
  • Gezgin Korsan
  • *
  • İleti: 1.439
  • İzmir
Ynt: Gezgin Korsan Okul Gemisi - Gaff-Rigged Schooner 60'
« Yanıtla #8 : Mayıs 17, 2010, 00:34:22 »
Cem korsanım ben tel kel in direğine çıkmadığım için karıştşrdşm herhal You are not allowed to view images. Register or Login
iskele  kaptanı

Çevrimdışı Özgür Tezcan

  • S/Y Melmoth II
  • Gezgin Korsan
  • *
  • İleti: 132
  • İstanbul
Ynt: Gezgin Korsan Okul Gemisi - Gaff-Rigged Schooner 60'
« Yanıtla #9 : Mayıs 17, 2010, 09:36:08 »
Anladığım kadarı ile aklınızdaki bu tekneyi kooperatif usulü alıp "gezgin korsan eğitim teknesi" olarak işletmek. Fikir çok güzel. Peki yabancı bayraklı bir tekne bu şekilde kullanılabilir mi?

Çevrimdışı Özden Oğul

  • Gezgin Korsan
  • *
  • İleti: 2.270
  • İzmir
Ynt: Gezgin Korsan Okul Gemisi - Gaff-Rigged Schooner 60'
« Yanıtla #10 : Mayıs 17, 2010, 09:38:22 »
Transitlog'a 1100 üyenin ismini eklemek zor olur  You are not allowed to view images. Register or Login
Hiçbirimiz hepimiz kadar akıllı değiliz.

Çevrimdışı Aali San

  • S/Y Sanela-TUR 5005
  • Gezgin Korsan
  • *
  • İleti: 1.398
  • İstanbul
Ynt: Gezgin Korsan Okul Gemisi - Gaff-Rigged Schooner 60'
« Yanıtla #11 : Mayıs 17, 2010, 10:15:43 »
 You are not allowed to view images. Register or Login Bravo GeKo'ya...
      Hızlı gidiyoz...Önce Dorry, hemen arkasından 60' uskuna !
      Eskiden bi, pimapenci reklamı vardı, hatırlar mısınız ;
      '' Yüz kapı hemen, bin kapı yarın ! '' diye ; aklıma o geldi.

      Ben araştırmalara başladım, 3. tekne olarak bir okyanus
      remorkör'ü filan alıp, tadil edip '' Explorer Yacht '' olarak
      kullanabiliriss...

      Hatta 7 denizde Korsanlık dahi yapabiliriz.  You are not allowed to view images. Register or Login
S/Y Sanela, Küçükyalı

Çevrimdışı Erdem Çakır

  • Gezgin Korsan
  • *
  • İleti: 3.741
Ynt: Gezgin Korsan Okul Gemisi - Gaff-Rigged Schooner 60'
« Yanıtla #12 : Mayıs 17, 2010, 10:57:36 »
You are not allowed to view links. Register or Login
Anladığım kadarı ile aklınızdaki bu tekneyi kooperatif usulü alıp "gezgin korsan eğitim teknesi" olarak işletmek. Fikir çok güzel. Peki yabancı bayraklı bir tekne bu şekilde kullanılabilir mi?

Öyle bir şey yok aklımda.

İlgimi çeken bir tekneyi,esprili bir şekilde tanıtmak için açılmış bir topictir sadece.  You are not allowed to view images. Register or Login
« Son Düzenleme: Mayıs 17, 2010, 10:57:56 Gönderen: Erdem Çakır »

Çevrimdışı Özgür Tezcan

  • S/Y Melmoth II
  • Gezgin Korsan
  • *
  • İleti: 132
  • İstanbul
Ynt: Gezgin Korsan Okul Gemisi - Gaff-Rigged Schooner 60'
« Yanıtla #13 : Mayıs 17, 2010, 15:09:38 »
Sazanlık durumu yani.
Pardon.

Çevrimdışı Serdar İyibudar

  • S/Y Elifim
  • Gezgin Korsan
  • *
  • İleti: 52
  • İstanbul
Ynt: Gezgin Korsan Okul Gemisi - Gaff-Rigged Schooner 60'
« Yanıtla #14 : Mayıs 22, 2010, 12:45:30 »
Tel kel, son 2 yıldır Marmaris Yatmarinde
S/Y Elifim
